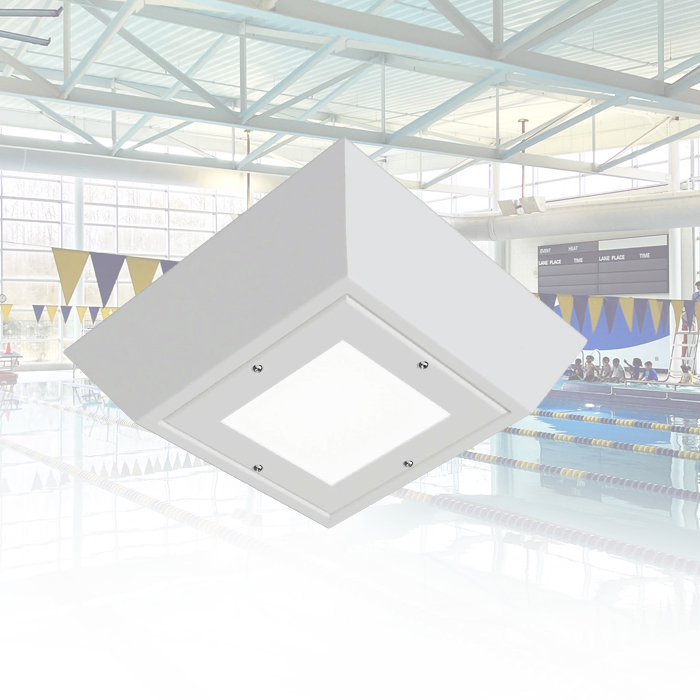

The BASNAT LED combines maximum security construction with energy saving technology. The BASNAT is ideal for security applications that require an IP65 surface mount fixture. This surface mount luminaire is a great fixture for facilities like a natatorium or any environment where moisture vapor is higher than normal, and/or corrosive airborne materials such as chlorine or salt is present.
CONSTRUCTION: Housing and doorframe available in aluminum or stainless steel construction. Available in various materials and thickness. The corners are seam welded and smooth. Fixture is gasketed to provide an IP65 rating. LED 2700K, 3000K, 3500K, 4000K and 5000K CCT LEDs, >82 CRI. 90 CRI available. Life is >100,000 hours at 70% lumen maintenance.
FASTENERS: Stainless steel tamper-resistant center pin TORX screws standard.
ELECTRICAL SYSTEM: Electronic driver 120-277V, standard 0-10V dimming. Long-life LED system rated for >100K hours (L70 @ 50°C). Complies with federal energy efficiency standards.
OPTICAL SYSTEM: Various lensing options available. Available with choice of inner and outer lenses, prismatic inner lens and clear outer lens (recommended). LISTINGS: ETL and cETL listed for wet locations. IP65 rating. Manufactured in the USA,BAA Compliant.
FINISH: The BASNAT is TGIC polyester powder coated white using a 5-stage pretreatment. Consult factory for other finishes.
NATATORIUM OPTION: Includes all the standard options, plus stainless-steel fasteners and a multi-step degrease and phosphate cleaning process that includes deoxidizing and etching. This is followed by an a super epoxy finish with a very high chemical resistance. This finish is specifically designed for these environments.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at: www.aelnow.com/warranty
