ILLUMINATION

• Universal 120-277 voltage.

• Unique bi-color LED indicator light alerts occupant on battery condition (Green-normal, Red-check battery).

• Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.

• 9.6V long-life, maintenance-free, rechargeable lithium iron phosphate battery.

• Remote capacity of 3.0 watts standard.

• Internal solid-state transfer switch automatically connects the internal battery to LED lamp heads for minimum 90-minute emergency illumination.

• Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

• Universal knockout pattern on back plate for surface mount.

• Knockouts provided for conduit feed applications.

• Suitable for wall or ceiling mount.

WARRANTY / LISTING

• Five-year warranty on all electronics and housing. Battery prorated for five years.

• Meets UL924, NFPA 101, Life Safety Code, NEC, OSHA, Local and State Codes.

• UL Listed for damp locations (0°C – 50°C).

• Certified to CEC under title 20 regulations.

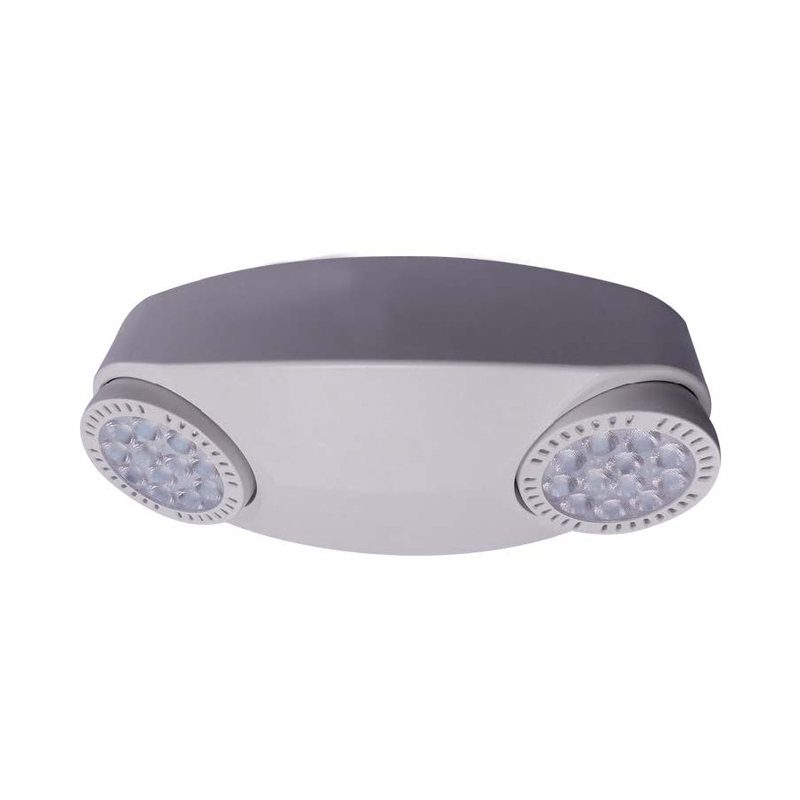

• Ultra-bright, energy efficient, long-life White LED adjustable lamp heads provide up to 100-ft center-to-center spacing with a 3-ft path of egress at 7-1/2-ft mounting height.

• High performance chrome-plated metallized reflector and plastic lens.

ELECTRICAL

• 5.0 watt (12 LEDs x 0.42 watt) per head.
