DESCRIPTION

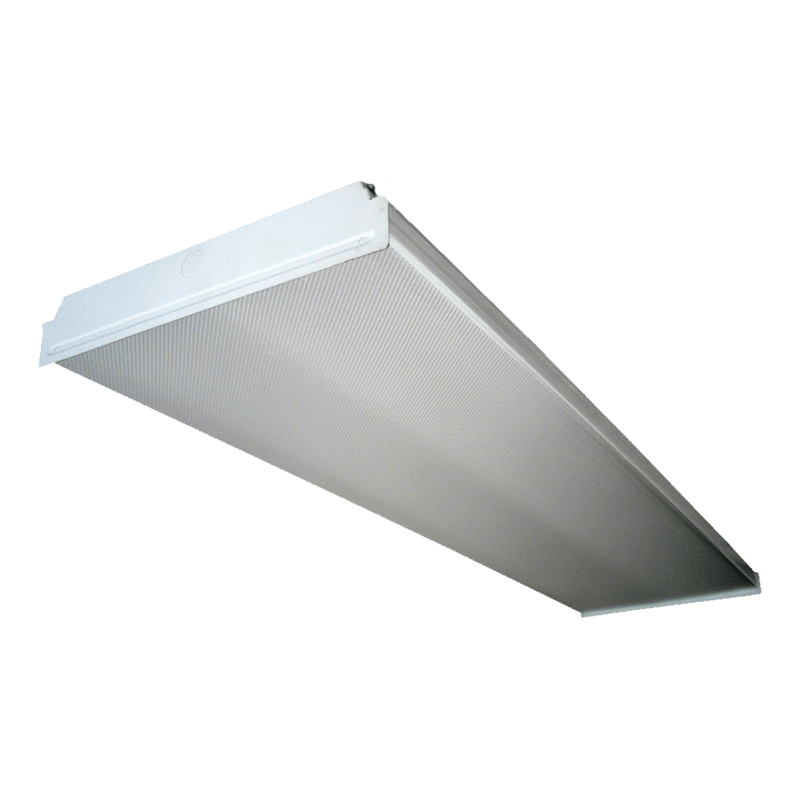

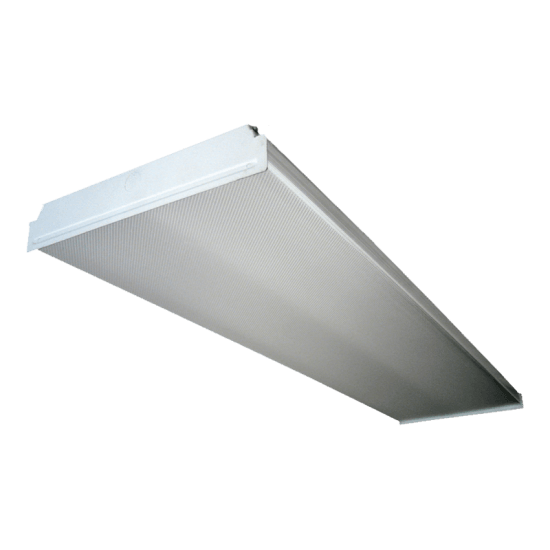

The LWW Series is a 16” LED Wrap available in 4’ body length. It is a low-profile,wrap that is designed for surface mounting applications. The LWW utilizes state-of-the-art LED technology to deliver the highest possible efficiency in the lighting industry.

APPLICATIONS
The LWW Series of 16″ LED Wraps were designed to be high quality, energy efficient LED fixtures for use in commercial applications, industrial spaces, and garage applications; as well as kitchens, offices, and storage rooms.

CONSTRUCTION
The fixture is constructed of a die-formed heavy gauge steel body. Housing embossed for maximum rigidity. Smooth hemmed sides for safe handling.

OPTICAL SYSTEM
High output LED’s available in 3500K, 4000K, and 5000K. CRI >82. White polyester polymer finish with a minimum 93% reflectivity. Lift-and-shift lens. Advanced microprism clear acrylic lens design provides excellent lamp obscuration. Linear sides provide excellent light distribution and put more light in task areas. Manufactured from durable DR/Acrylic polymer blend.

ELECTRICAL SYSTEM
Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 25°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.

MOUNTING
Unit may be surface, stem or aircraft cable mounted individually or in continuous rows.

LISTINGS
Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed. Damp location rated.

WARRANTY
5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty.
