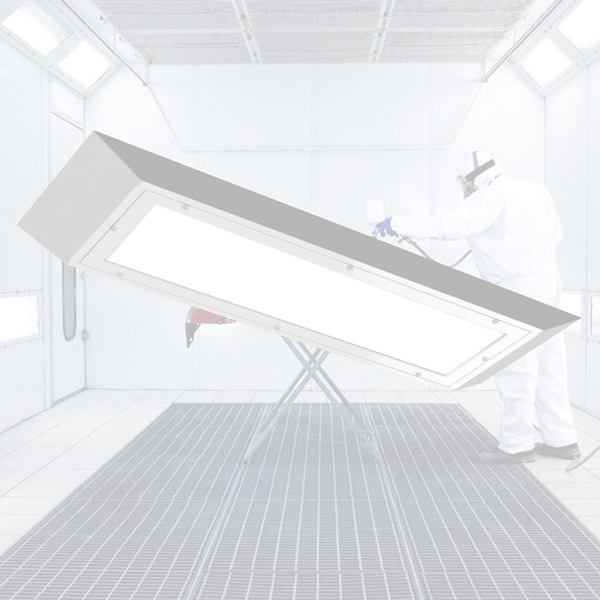

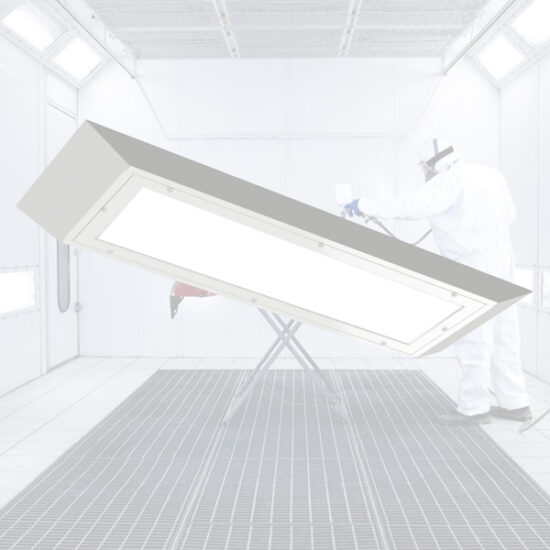

The BHAERO is an aerodynamic surface mount LED luminaire. Created with performance in mind, while maintaining a beautiful appearance. Designed with the ability to be mounted without having to take the fixture apart. The BHAERO is engineered to be a durable, slim, aerodynamic, high performance luminaire that sets unprecedented standards for contemporary light fixtures. Through extensive testing and refining, this fixture is one on the most moisture resistant we have ever designed.
CONSTRUCTION: Various housing and door frame options, consult factory for additional options. Stainless steel captive screws secure the door frame to the fixture. One piece, seamless housing provides for maximum impact resistance. Engineered with 30° slopes to reduce drag and wind noise, while preventing lift forces caused by heavy air currents. 10° slopes eliminate any chance of water pooling on the fixture when surface mounted to a wall.
OPTICAL SYSTEM: High output LED’s available in 3000K, 3500K, 4000K, and 5000K. CRI >82. Projected life of at least 60,000 hours. Contact factory for TM-21 detail. Use of closely spaced medium-power, high brightness chips minimizes pixelation and provides uniform luminance. (For maximum diffusion LED’s are coved with lens).
GASKETING/SEALS: The BHAERO is sealed with high-quality, closed cell neoprene gaskets to prevent dust and water from entering the fixture, IP65 rating. We developed a unique and highly effective configuration using mutiple gaskets, along with non-hardening silicon, to create a full sealed fixture.
ELECTRICAL SYSTEM: Universal voltage (120-277 Vac) Input 50/60 Hz. Power factor > 0.95, THD < 20%. High-performance isolated driver features over-voltage, under-voltage, short-circuit and over temperature protection. Class A sound rating. 0-10 volt dimming (1% – 100%) standard.
MOUNTING: This fixture is designed to be recessed mounted. LISTINGS: ETL listed. IP65 Rated. Made in the USA. Exceeds the requirements set by the European Union, and therefore eligible to bear the CE marking. FINISH: High gloss, electrostatically applied, white powder coat finish with an average minimum reflectance of 92% included standard. Consult factory for custom finishes.
WARRANTY: 5-Year Limited Warranty. Complete warranty and terms located at www.aelnow.com/warranty
